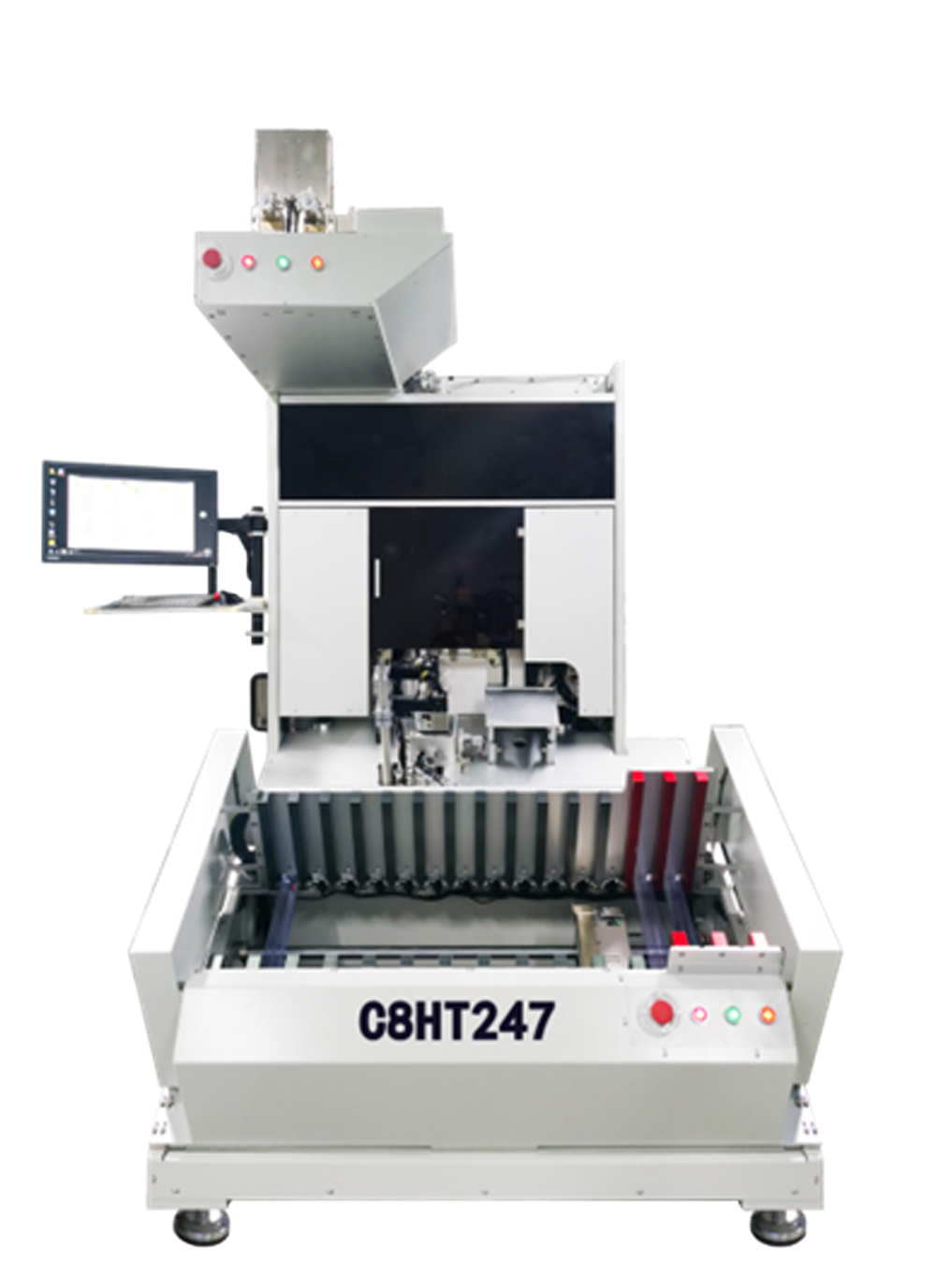

C8HT Series Gravity Automatic Handler
An automatic handler intended for devices of TO series power discrete devices
It is an automatic handler intended for devices of TO series power discrete devices. It boasts high temperature testing capability, and the temperature range is ambient temperature to 175°C with the temperature precision of ±3°C.
C8HT Series
Specifications
IC Packaging
TO251/252/263/220/247
Device Loading/Unloading Mode
tube in / tube out
Test Site
2 to 5 sites for electric performance serial test
Test Methods
Plunge to Board
Visual Inspection
track 2D mark +3D Lead (optional)
UPH
Max.3000(test within 500ms based on TO247)
MTBA
≥1h
Bin Type
6-12 auto tube
Temperature Range
Ambient temperature, 50°C~175℃
Temperature Accuracy
±3℃
Communication Interface
GPIB, TTL, RS232 (optional)
Equipment Dimensions
1,250mmx1,300mmx2,500mm
