Ambient/ High-temp Pick & Place Handler
CF Series Ambient/High-temp Pick and Place Handler
Maximum number of parallel test sites is 8, 16, and 32
CF series pick and place handlers integrate functions including test, visual inspection, and tape and reel, which reduce product transit to decrease product quality risks.
Specifications
CF Series

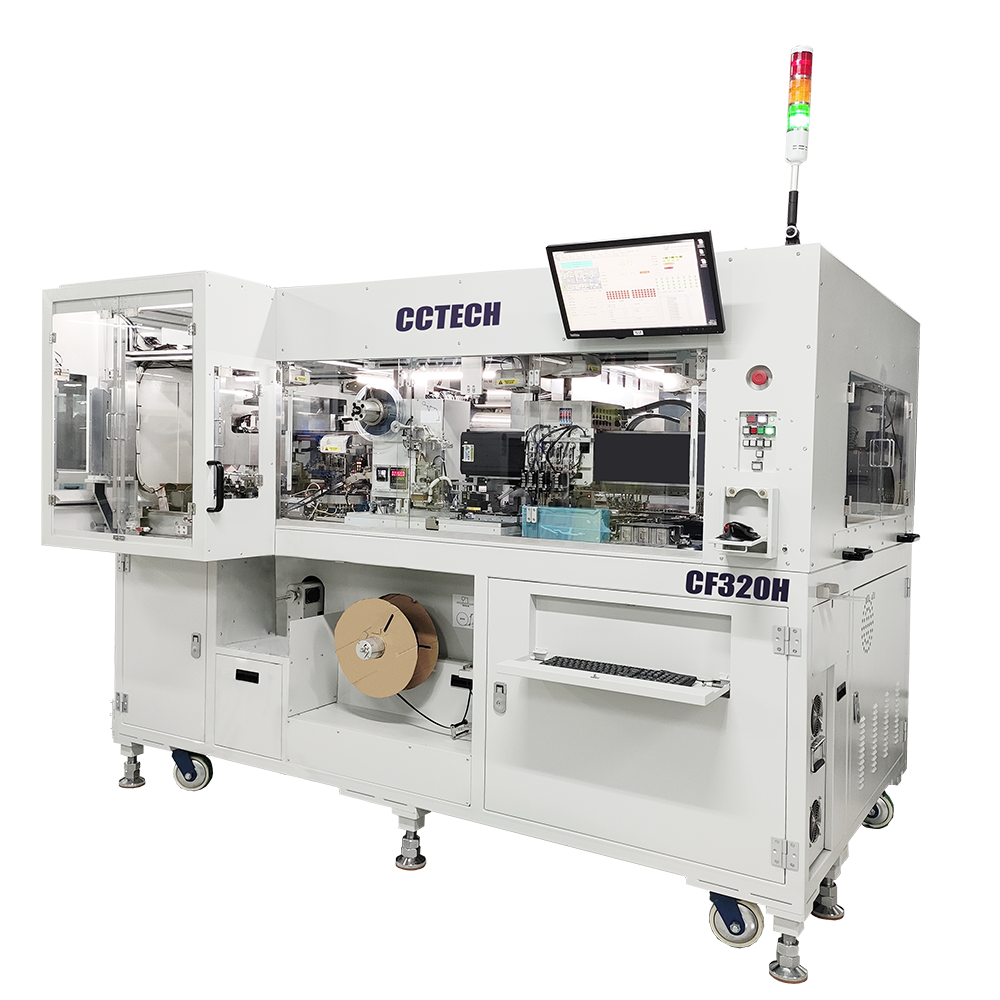

CF320
IC Packaging
QFN/LGA/DFN
Package Size
2mm×2mm～7mm×7mm
Device Loading/Unloading Mode
bowl in / box out / reel out
Test Site
32 site
Maximum UPH (ambient temperature)
8,800
Jam Rate
≤1/3,000
Contact Force
Max. 160Kgf
Temperature Range & Accuracy
50℃~90℃±2℃ | 90℃~150℃±3℃
Hardware Bin
Device box / Tape & Reel
Visual Inspection
BOTTOM 2D+Inpocket visual inspection
Communication Interface
TTL, GPIB, RS232, TCP/IP
Equipment Dimensions
3,300mm×1,990mm×2,000mm

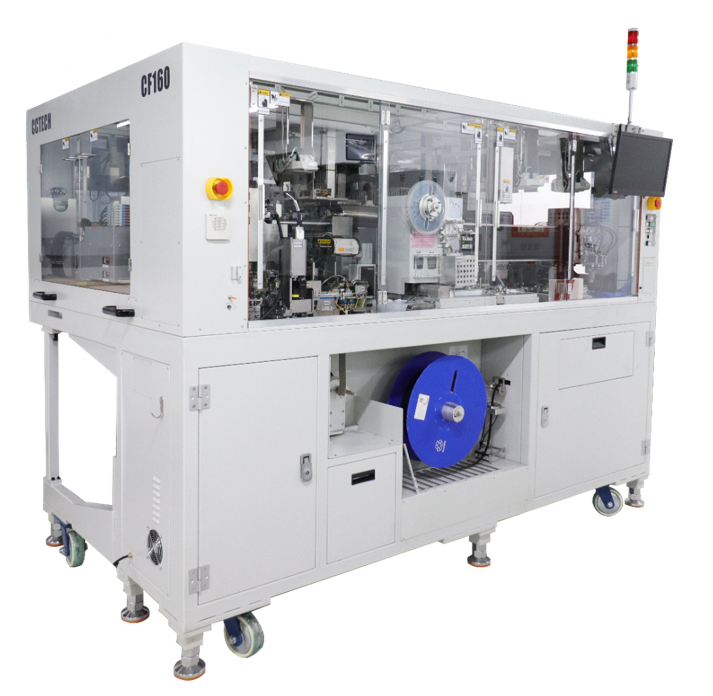

CF160
IC Packaging
QFN/LGA/DFN
Package Size
2mm×2mm～7mm×7mm
Device Loading/Unloading Mode
bowl in / box out / reel out
Test Site
16 site
Maximum UPH (ambient temperature)
9,500
Jam Rate
≤1/5,000
Contact Force
Max. 160Kgf
Temperature Range & Accuracy
50℃~90℃±2℃ | 90℃~150℃±3℃
Hardware Bin
Device box / Tape & Reel
Visual Inspection
2D Top+5S+Inpocket visual inspection
Communication Interface
TTL, GPIB, RS232, TCP/IP
Equipment Dimensions
2,700mm×1,700mm×2,000mm

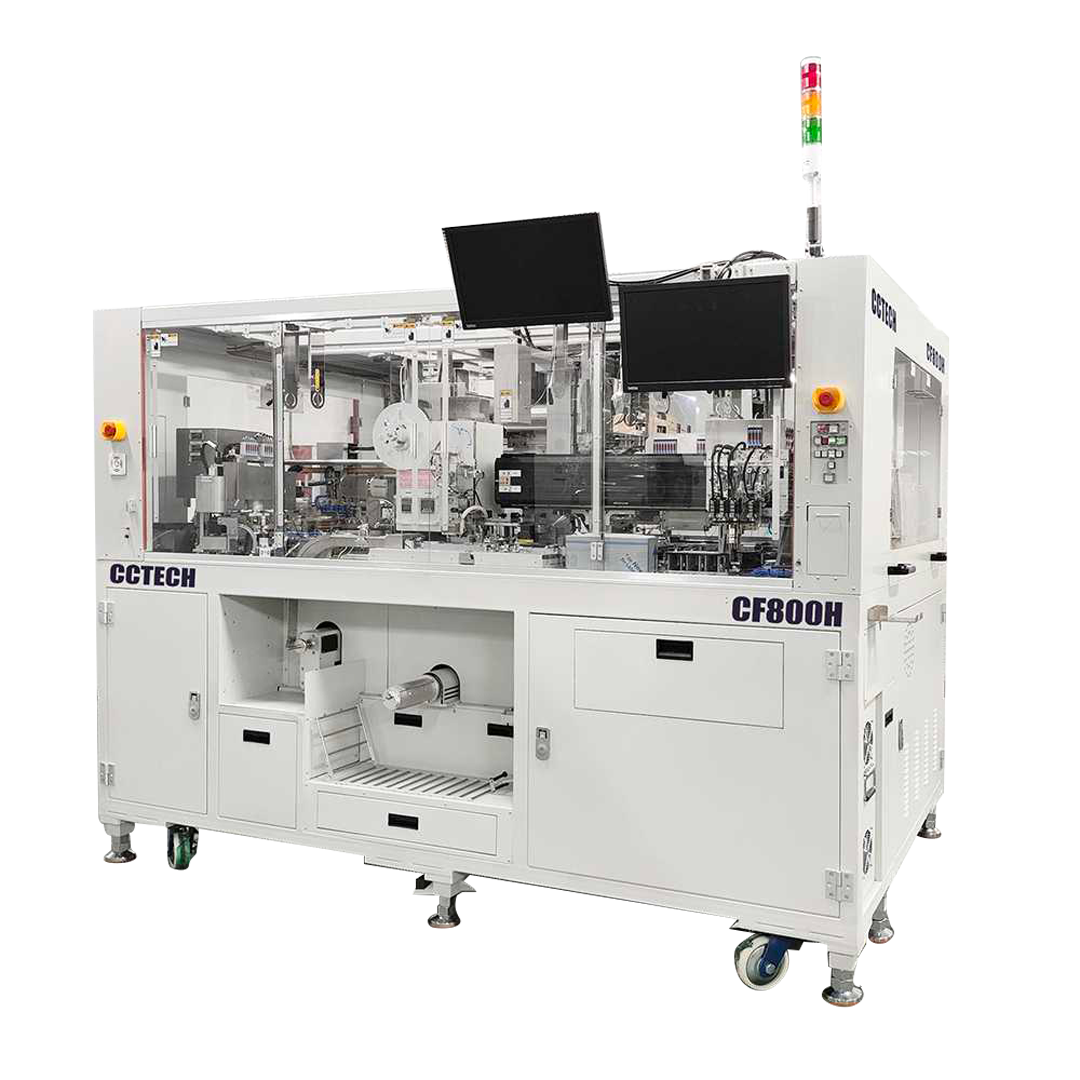

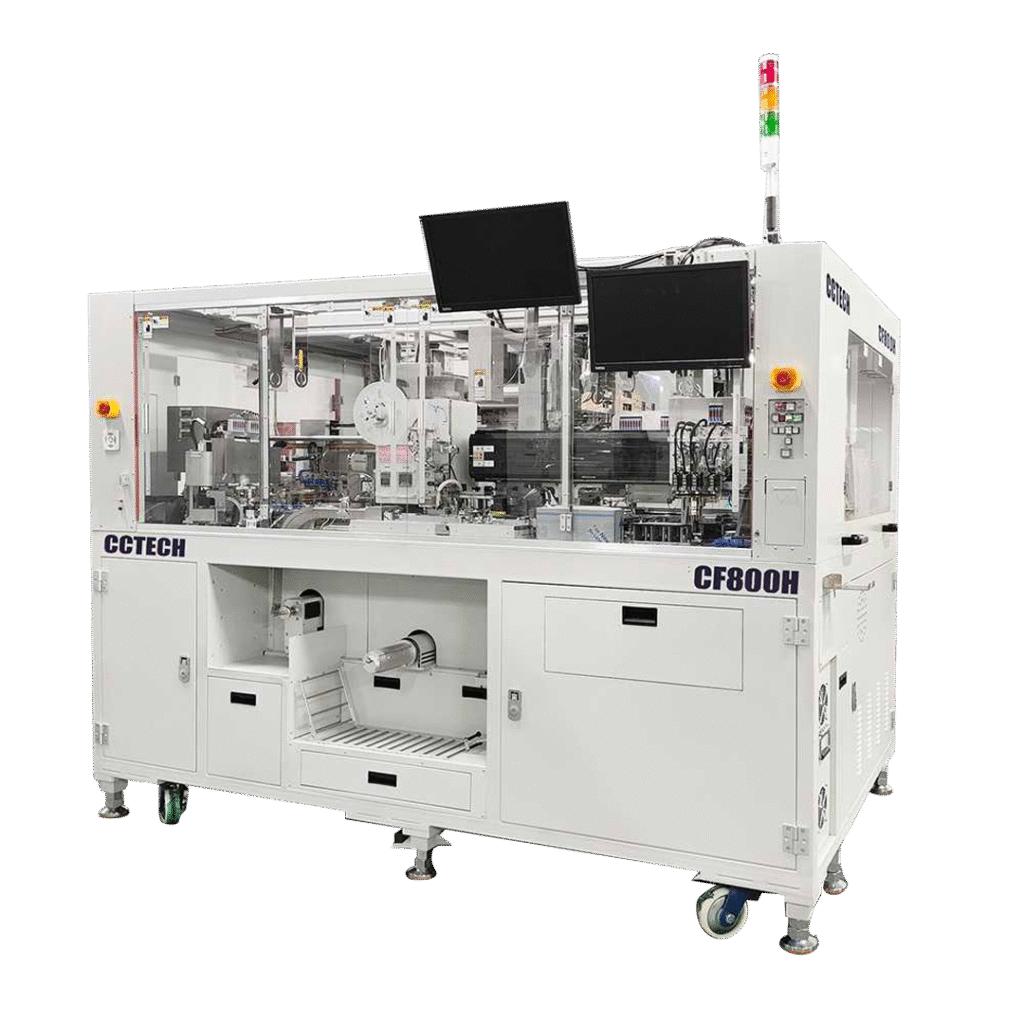

CF800
IC Packaging
QFN/LGA/DFN
Package Size
2mm×2mm～7mm×7mm
Device Loading/Unloading Mode
bowl in / box out / reel out
Test Site
8 site
Maximum UPH (ambient temperature)
9,500
Jam Rate
≤1/5,000
Contact Force
Max. 160Kgf
Temperature Range & Accuracy
50℃~90℃±2℃ | 90℃~150℃±3℃
Hardware Bin
Device box / Tape & Reel
Visual Inspection
2D Top+5S+Inpocket visual inspection
Communication Interface
TTL, GPIB, RS232, TCP/IP
Equipment Dimensions
2,700mm×1,700mm×2,000mm
IC Packaging
SOP/QFN/QFP/LGA/BGA/CSP
Package Size
2mm×2mm～100mm×100mm
Device Loading/Unloading Mode
tray in /tray out
Test Site
4 site
Maximum UPH (ambient temperature)
9,500
Jam Rate
≤1/10000
Contact Force
Max. 120Kgf
Temperature Range & Accuracy
50℃~90℃±2℃ | 90℃~150℃±3℃
Communication Interface
TTL, GPIB, RS-232, TCP/IP
Equipment Dimensions
1,800mm×1,450mm×1,860mm
IC Packaging
SOP/QFN/QFP/LGA/BGA/CSP
Package Size
2mm×2mm～100mm×100mm
Device Loading/Unloading Mode
tray in /tray out
Test Site
8 site
Maximum UPH (ambient temperature)
1,300
Jam Rate
≤1/10000
Contact Force
Max.240Kgf
Temperature Range & Accuracy
1,960mm×1,540mm×2,000mm
Communication Interface
TTL, GPIB, RS-232, TCP/IP
Equipment Dimensions
1,800mm×1,450mm×1,860mm
IC Packaging
SOP/QFN/QFP/LGA/BGA/CSP
Package Size
2mm×2mm～100mm×100mm
Device Loading/Unloading Mode
tray in /tray out
Test Site
16/32 site(option)
Maximum UPH (ambient temperature)
1,450
Jam Rate
≤1/10000
Contact Force
Max. 480Kgf
Temperature Range & Accuracy
50℃~90℃±2℃ | 90℃~150℃±3℃
Communication Interface
TTL, GPIB, RS-232, TCP/IP
Equipment Dimensions
2,350mm×1,820mm×2,240mm
Specifications
C6 Series Ambient/High-temp Pick & Place Handler
IC Packaging
QFN/LGA/DFN
Package Size
2mm×2mm～7mm×7mm
Device Loading/Unloading Mode
bowl in / box out / reel out
Test Site
32 site
Maximum UPH (ambient temperature)
8,800
Jam Rate
≤1/3,000
Contact Force
Max. 160Kgf
Temperature Range & Accuracy
50℃~90℃±2℃ | 90℃~150℃±3℃
Hardware Bin
Device box / Tape & Reel
Visual inspection
BOTTOM 2D+Inpocket visual inspection
Communication Interface
TTL, GPIB, RS232, TCP/IP
Equipment Dimensions
3,300mm×1,990mm×2,000mm
IC Packaging
QFN/LGA/DFN
Package Size
2mm×2mm～7mm×7mm
Device Loading/Unloading Mode
bowl in / box out / reel out
Test Site
16 site
Maximum UPH (ambient temperature)
9,500
Jam Rate
≤1/5,000
Contact Force
Max. 160Kgf
Temperature Range & Accuracy
50℃~90℃±2℃ | 90℃~150℃±3℃
Hardware Bin
Device box / Tape & Reel
Visual inspection
2D Top+5S+Inpocket visual inspection
Communication Interface
TTL, GPIB, RS232, TCP/IP
Equipment Dimensions
2,700mm×1,700mm×2,000mm
IC Packaging
QFN/LGA/DFN
Package Size
2mm×2mm～7mm×7mm
Device Loading/Unloading Mode
bowl in / box out / reel out
Test Site
8 site
Maximum UPH (ambient temperature)
9,500
Jam Rate
≤1/5,000
Contact Force
Max. 160Kgf
Temperature Range & Accuracy
50℃~90℃±2℃ | 90℃~150℃±3℃
Hardware Bin
Device box / Tape & Reel
Visual inspection
2D Top+5S+Inpocket visual inspection
Communication Interface
TTL, GPIB, RS232, TCP/IP
Equipment Dimensions
2,700mm×1,700mm×2,000mm
